Optex

The Optex OA-Edge T 900mm is a safety sensor designed for automatic swing doors, providing enhanced pedestrian safety through advanced Active Infrared Triangulation Technology. It offers a wide detection area, ensuring a safety curtain to prevent collisions. The sensor provides a detection area of 870mm in width and 140mm in depth when installed at a height of 2200mm. The OA-Edge T version is compliant with EN16005 standards and has been tested and approved by the German test organisation TÜV. It also features built-in monitoring capabilities for reliable operation.

The Optex OA-Edge T 900mm Slave Sensor is designed to enhance safety around automatic swing doors by providing additional detection coverage. It operates in conjunction with a master module to extend the sensor's detection area, ensuring comprehensive monitoring of the door's surroundings. The sensor features a slim profile, available in black, and is compliant with EN16005 standards, meeting European regulations for automatic door safety.

The Optex OA-Edge T 340mm Slave Sensor is designed to enhance safety around automatic swing doors by providing additional detection coverage. It operates in conjunction with a master module to extend the sensor's detection area, ensuring comprehensive monitoring of the door's surroundings. The sensor features a slim profile, available in black, and is compliant with EN16005 standards, meeting European regulations for automatic door safety.

The Optex OA-Edge T rain cover is designed to protect the OA-Edge T safety sensor from environmental elements, ensuring its durability and reliable performance in various weather conditions. This cover can be easily placed over the sensor to shield it from rain and other elements.

The Optex OA-Edge T End Caps are essential components for the OA-Edge T series automatic door sensors, providing protection and a finished appearance to the sensor's ends. These end caps are available in pairs, suitable for both left and right sides. They are designed to fit seamlessly with the sensor's profile, ensuring a secure and aesthetically pleasing installation.

The Optex OA-Edge T Master Card is the primary module for the OA-Edge T automatic door sensor system. It serves as the control unit, enabling configuration and optimisation of detection areas. The master card works in conjunction with slave sensors to extend coverage, ensuring safety around automatic doors.

The Optex OA-Edge T Slave Card is a secondary module designed to work with the OA-Edge T Master Card in an automatic door sensor system. It extends the detection area to provide comprehensive safety coverage around automatic doors. The slave card relies on the master card for configuration and functions to increase the system's detection range, ensuring optimal safety performance.

The Optex OM-106C is a microwave sensor designed to enhance the comfort and efficiency of automatic doors. It offers flexible area adjustment, allowing for narrow or wide detection settings to suit various installation requirements. The sensor features a uni-directional mode, enabling detection of traffic approaching the door while allowing for quicker closure after departure, thereby contributing to energy savings. Additionally, the OM-106C includes an auto-caution mode that automatically switches from uni-directional to bi-directional detection to prevent the door from closing if a person is lingering in the detection area. It is suitable for mounting heights ranging from 2.0 to 3.5 meters and operates within a temperature range of -20°C to +55°C. The sensor is available in silver and black housing options.

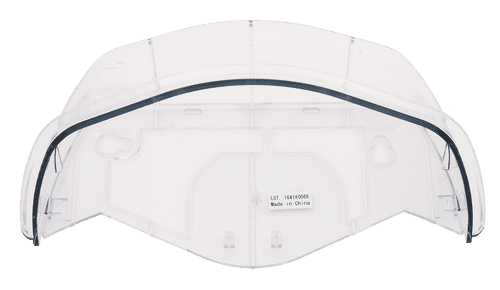

The Optex OM-106C is a microwave sensor designed to enhance the comfort and efficiency of automatic doors. To protect the sensor from environmental elements, Optex offers a rain cover specifically designed for the OM-106C model. This cover ensures the sensor's durability and reliable performance in various weather conditions.

The Optex OA-AXIS T is an advanced automatic door sensor that combines activation and threshold safety functions using active infrared technology. It features a large detection area, ensuring timely door activation for pedestrians and objects approaching from any angle. The sensor's presence detection can be precisely adjusted, eliminating the need for additional safety beams. It offers various output options to meet different market requirements and complies with European standards EN 16005 and DIN 18650, having been tested and approved by the German test organisation TÜV. The OA-AXIS T is available in silver and black housing options.

The Optex OA-PRESENCE TN is an active infrared sensor designed to enhance safety around automatic sliding doors. It offers side screen and threshold safety, eliminating the need for additional safety beams. The sensor features adjustable presence detection, allowing precise alignment to focus detection close to the door. It operates on a power supply of 12 to 24V AC or 12 to 30V DC and has an IP54 rating, ensuring durability in various environments. The OA-PRESENCE TN complies with European standards EN 16005 and DIN 18650 and has been tested and approved by the German test organisation TÜV. It is available in silver and black housing options.

The Optex OAM-DUAL T is an advanced automatic door sensor that combines active infrared and microwave technologies to enhance both safety and performance for sliding doors. It features dual rows of active infrared safety detection in front of the threshold, with adjustable angles to focus detection close to the door. The sensor also includes BLUEZONE® technology, which monitors the threshold area to prevent the door from closing when an object is detected, ensuring safe operation. Additionally, the OAM-DUAL T offers cross traffic cancellation to prevent unnecessary door openings and supports uni-directional mode for faster door closure when traffic is moving away from the door. It is compliant with EN 16005 and DIN 18650 standards and has been tested and approved by the German test organisation TÜV. The sensor is available in black housing.

The Optex OAM-DUAL TE is an advanced sensor designed for automatic sliding doors, combining active infrared and microwave technologies to enhance safety and performance. It features two rows of active infrared safety detection in front of the threshold, known as AIR (Active Infrared) areas, which can be precisely adjusted to focus detection close to the door. Additionally, the sensor includes BLUEZONE® technology, providing an extra row of presence detection that looks into the threshold, ensuring comprehensive monitoring of the door's surroundings. The OAM-DUAL TE model is specifically safety-tested for use in escape routes, complying with EN 16005 and DIN 18650 standards. It offers a large microwave motion detection area, allowing for convenient door openings. The sensor's presence and motion detection areas can be adjusted independently, and it includes features like cross traffic cancellation and uni-directional mode to enhance user comfort and energy efficiency.

The Optex OA-FLEX Lite is a versatile sensor designed for automatic sliding doors, combining activation and safety functions into a single unit. It offers 1 to 5-row detection capabilities, making it suitable for various installation requirements. The sensor is engineered to perform reliably in extreme weather conditions, ensuring consistent operation across diverse environments. Its slim, stylish design allows for discreet installation, maintaining the aesthetic integrity of the building.

The Optex OA-FLEX T is an advanced sensor designed for automatic sliding doors, integrating activation and safety functions into a single unit. Utilising active infrared technology, it offers whole presence detection capability, enhancing safety and reliability. A key feature is its BLUEZONE® technology, which detects through the threshold, ensuring the door remains open when someone is in the detection area and safely closes once the area is clear. The sensor also includes built-in monitoring capabilities, notifying compatible controls of any errors to maintain optimal performance. Compliant with EN16005 standards, the OA-FLEX T is suitable for mounting heights between 2.0m and 2.5m. It is available in silver and black housing options.

The Optex RH-01 is a rain cover designed to protect Optex's OAM-Dual and Axis series automatic door sensors from environmental elements, ensuring their durability and reliable performance in various weather conditions. This cover shields the sensors from rain and other environmental factors, maintaining their functionality and extending their lifespan.
