Relays & PCB's

The Multi-Purpose Relay is designed for both AC and DC input, offering flexibility in various applications. It features double output contacts rated at 30V, capable of switching up to 5 amps. The unit measures 45mm in width, 75mm in height, and 28mm in depth.

The LED Countdown Timer Relay features a single 30V AC/DC output with contacts rated to switch up to 5 amps. It offers a time range from 1 second to 999 minutes, providing precise control for various applications. The unit measures 40mm in width, 76mm in height, and 17mm in depth.

The Simple Timer Module is designed to create a time delay between an exit button and a lock. It features an adjustable timer ranging from 0 to 15 seconds. The unit measures 48mm in width, 61mm in height, and 18mm in depth.

The Door Lock Interface Module enables the connection and control of two doors. It has compact dimensions of 60mm in width, 69mm in height, and 15mm in depth.

The 24V to 12V Voltage Reducer converts 24 volts down to 12 volts. It has compact dimensions of 38mm in width, 40mm in height, and 15mm in depth.

The Multi-Purpose DC Voltage Reducer accepts an input of up to 32V DC and provides multiple step-down outputs at 24V, 12V, 9V, 6V, and 3V, each at 1A. It has compact dimensions of 39mm in width, 53mm in height, and 13mm in depth.

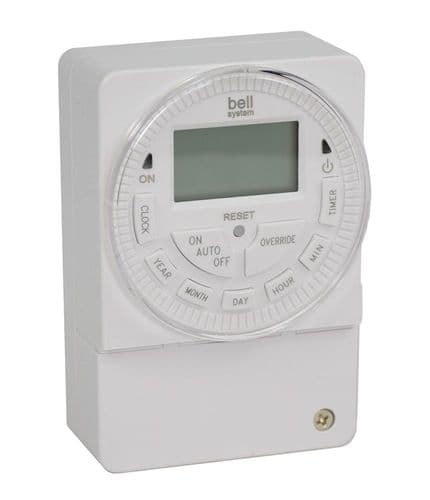

The 12V 7-day timer allows for daily and weekly programs with up to 8 on/off periods. It offers 15 repeat options, including day, week, weekend, and odd weekdays, providing flexibility for various scheduling needs. The timer operates with a voltage range of 10-18V AC/DC and can be easily wall-mounted for convenience.

The Pulse/Latching Handy Little Relay Toggle operates with a voltage range of 6 to 28Vdc. It features a single pole changeover relay with volt-free (dry) contacts. The compact unit has dimensions of 48mm W x 53mm H x 20mm D, making it suitable for various applications requiring a simple toggle or pulse function.

The Single Gang Traffic Light Module features red and green LED indicators and operates on 12/24V DC. It can be surface-mounted using the LFA-2240-BB backbox. Its dimensions are 85mm in width, 85mm in height, and 15mm in depth.

The Back Box is designed to suit the LFA-2240, providing a compatible mounting solution.

The Jamb Traffic Light Module features red and green LED indicators and operates on 12/24V DC. It can be surface-fitted using the LFA-2240-BB and measures 50mm wide, 120mm high, and 47mm deep.

The Back Box is designed to suit the LFA-2241, providing a secure and convenient mounting solution.
